Description
Product Code: GCR13MB

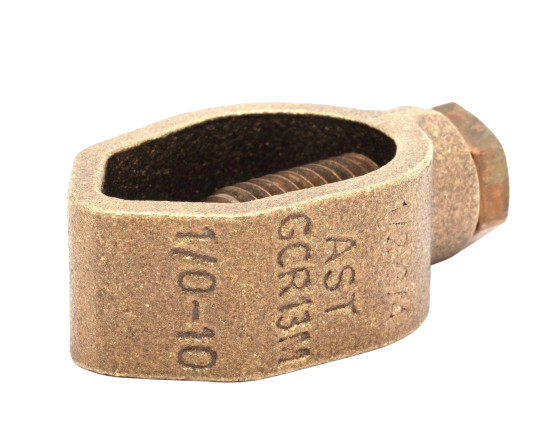

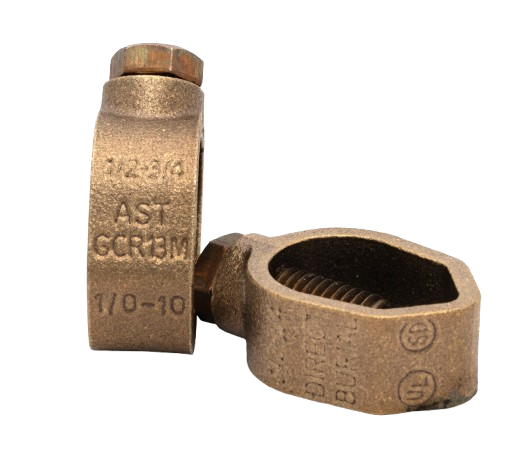

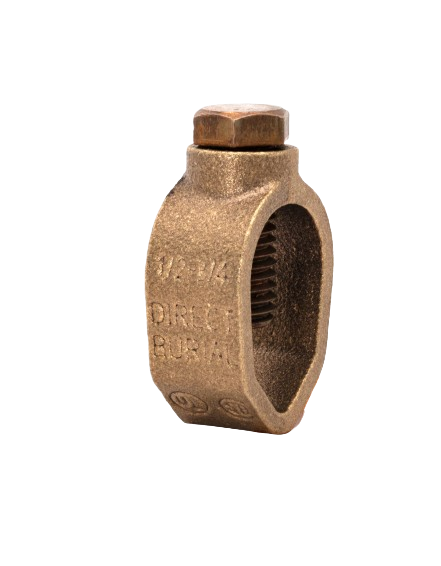

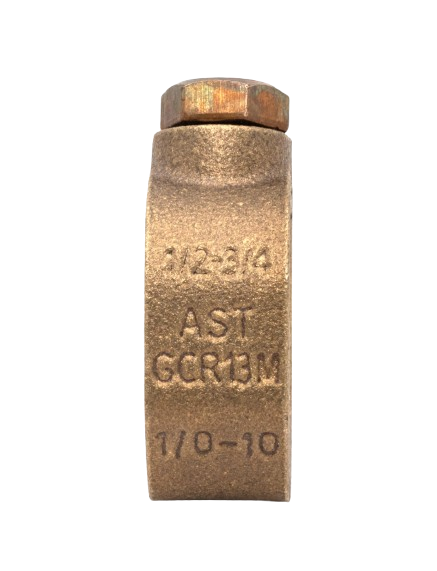

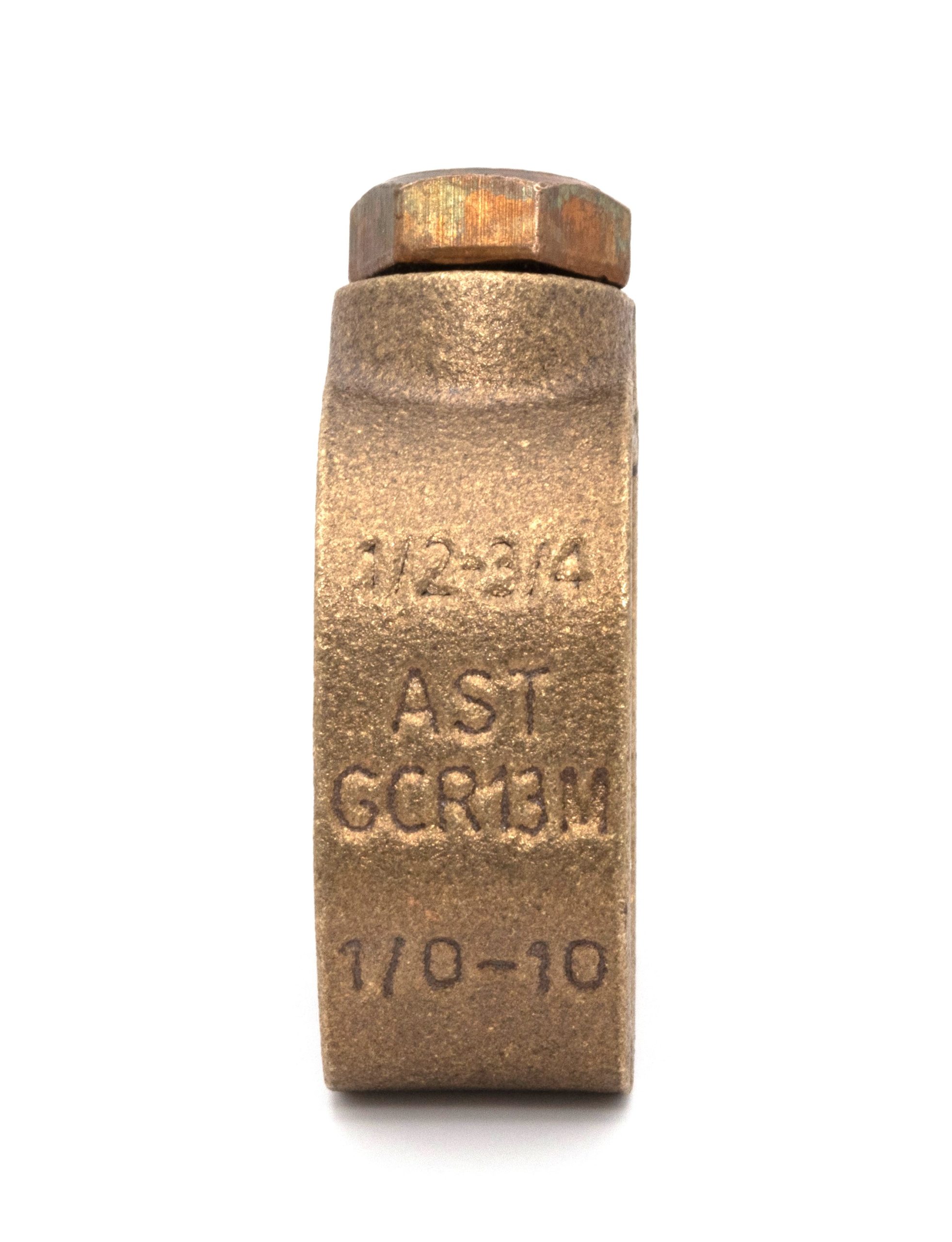

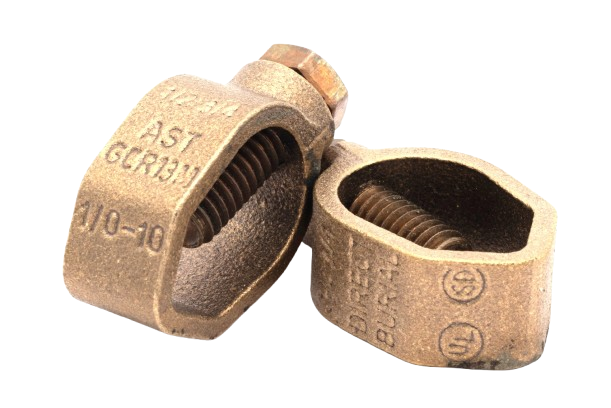

AST Universal Ground Rod Clamp
Bolt Material: Bronze
Conductor Range: 10-1/0 STR
Ground Rod Size: 1/2″-3/4″
Rebar Size: #5,#6
UL Listed
Direct Burial
CSA Listed
GCR13MB AST Universal Ground Rod Clamp 1/2″-3/4″
Specs
| Dimensions | |
| Height | 1.78in |
| Length | 1.09in |
| Width | 0.60in |
| Weight | 0.113Lb |
| Certification | |
| UL Listed | Yes |
| CSA Listed | Yes |
| Direct Burial | Yes |
| Packaging | |
| Inner Box Quantity | 50 |
| Outer Box Quantity | 200 |
| Minimum Order Quantity | 50 |
| Specs | |
| Rebar Rod Size Size | #5-#6 |
| Rebar Conductor Range | 10 Str- 1/0 Str |
| Ground Rod Size | ½”-3/4” |
| Ground Rod Conductor Size | 10 Str- 1/0 Str |
